ADVANTECH
Hotline: BMC Solutions GmbH - +49-89-800694-0
SMALLER
Perfect fit in Control Cabinet
Thin Slice Io Module
FASTER
Intel Core i 6th Gen CPU
100us Real-time EtherCAT Bus
SMARTER
IEC-61131-3 Softlogic Integrated
Cloud Connectivity Ready

EtherCAT Slice I/O and Controller

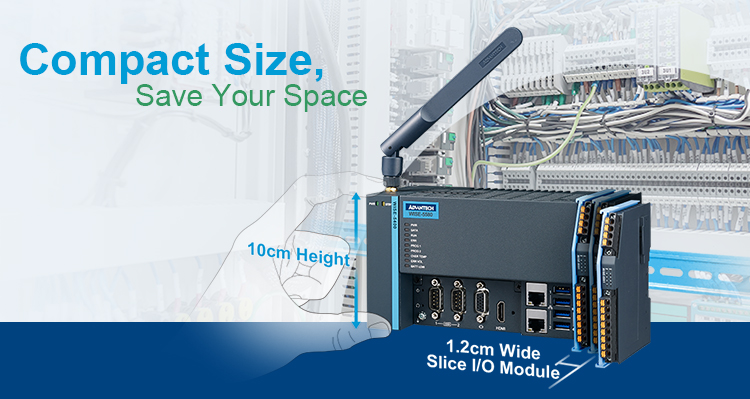

Compact size with a height of 10 cm controller and slice I/O

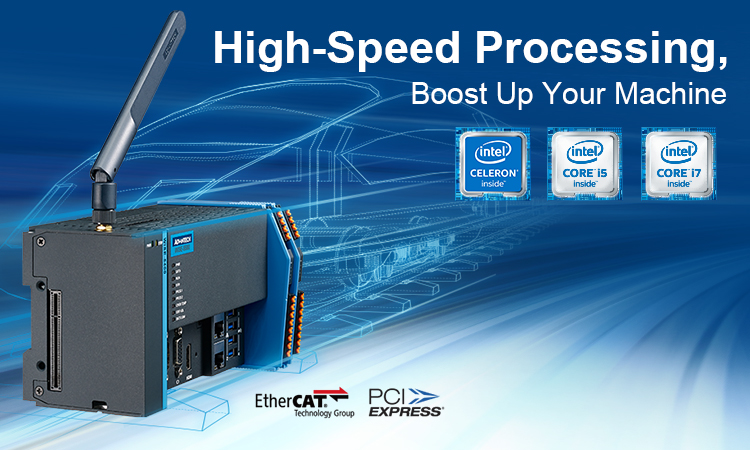

High-Speed PCI Express and EtherCAT Interface
Intel 6th Generation Core i7, i5, Celeron CPU

  Controller

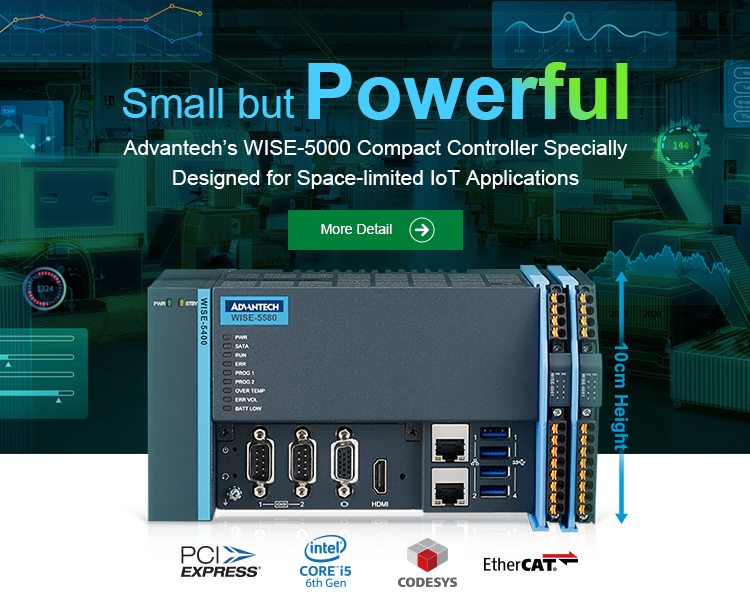

WISE-5580
DIN-Rail Control IPC w/ EtherCAT Slice IO Expansion
Intel 6th Gen Core i7/i5/Celeron CPU
2xLAN, 4xUSB 3.0, 2xSerial, VGA+HDMI Dual Display
Compact and fanless design for DIN-rail mount in Control cabinet
BIOS/OS optimized for CODESYS/EtherCAT enviornment
Product Page

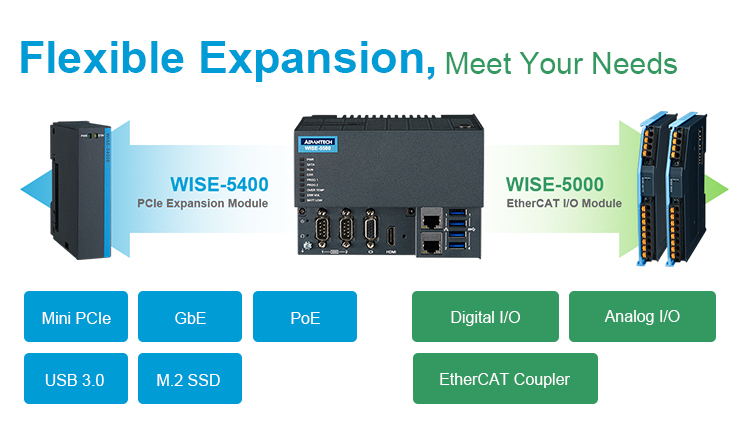

  EtherCAT I/O Module

Infrastructure
WISE-5001
Smart power input module
WISE-5074
EtherCAT coupler
WISE-5079
EtherCAT extension

Analog I/O
WISE-5015
4-Ch RTD (2/3 wire)
WISE-5017V
6-Ch voltage AI,
multi-gain 16-bit
WISE-5017C
6-Ch current AI,
0-20/4-20mA 16-bit
WISE-5018
6-Ch T/C, J,K,T,E,R,S,B, mV, Open detect
WISE-5024
4-Ch AO multi-gain,
14-bit

Digital I/O
WISE-5051
8-ch/16-ch Iso. DI
WISE-5056
8-Ch Iso. DO sink type
WISE-5057
16-Ch Iso. DO sink /
source type
WISE-5052
8-ch/16-ch Iso. DI
WISE-5056SO
8-Ch Iso. DO source type
WISE-5057SO
16-Ch Iso. DO sink /
source type
WISE-5080
2-Ch counter/ encoder 32-bit


  PCIe Expansion Module

WISE-5400E
PCIe-mini card with SIM card slot
WISE-5410
2 x GbE expansion module
WISE-5410P
2 x PoE expansion module
WISE-5424V
4 x USB 3.0 with full bandwidth
WISE-5490
2 x Isolated
RS-232/422/485
